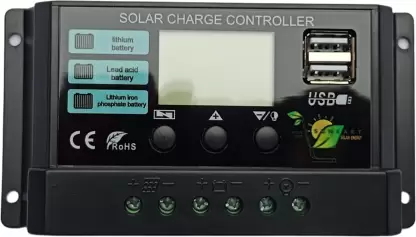

Solar Charge Controller

12V/24V/48V,40A,60A PWM Solar Charge Controller With LDC display



Model:SMC40: 40A

SMC50: 50A



Description

This is a high-power PWM solar controller, automatically adapt to 12V, 24V, 48V battery, load has a variety of working modes, LCD display, can be widely used in solar power generation systems, advertising light systems



Feature

– Advanced 3-stage PWM charging technology

– 12V/24V/48V auto recognition

– Load work mode: lighting control, lighting control+time control,real time control, manual control

– LCD display

– Fully electronically protected

– Adopt high quality, high-reliability international components brand

– external temperature sensor



Specifications

Battery voltage: 12V/24V/48V auto recognition

Battery tpye: Lead acid

Max.charge current: 40A | 60A

Max.load current: 54A | 60A

Max.PV Voc: 12V system: 30V, 24V system: 50V, 48V system: 90V,

Weight: 1.88Kg
